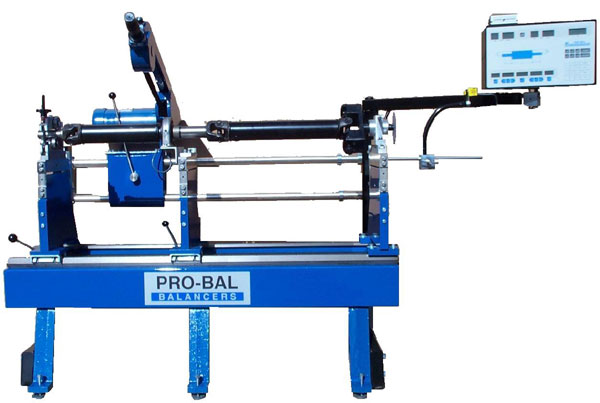

PB-1000 Driveline Balancer

Weight Range:
3 -1000 lbs.

Drive motor
DC Variable Speed:
1 HP

Power Requirements:
110V 15AMP
single phase 50/60 hz, AC**

Electronics:
110V
single phase AC

Min. Detectable  Unbalance:
.01 oz./in.

Length Between  Support Beams:
5 - 55 in.*

Diametral Range  Between Support  Bearings:
.5 - 41 in.

Min. Rotor Correction   Diameter:
3 in.

Max. Rotor Diameter  Beyond Bearings:
79 in.

Diameter Range at  Support Bearings:
up to 8.25in.

Drive Diameter  Capacity:
24 in.

Cradle Base Length:

5 ft.*


Shipping weight :
1400 lbs.




Buy this machine for
$325.33/mo. Through our

lease/purchase financing program
.

Description

Our model PB-1000 automotive hard bearing driveline balancer is the most versatile balancing machine on the market and is the easiest to set up and operate. Our unique belt drive system is "overhead" which means driveshafts can be placed in and out of the balancer's driveshaft tooling very quickly.

Pro-bal offers the largest selection of driveline tooling and accessories to provide you the opportunity of maximizing the real profit potential associated with balancing driveshafts.

The balancer can be ordered with either (1) extra column for balancing two-piece shafts or (2) extra columns for balancing three-piece shafts. These columns can be either "support" only
Or can be support and "live" in order to provide unbalance readings at each end of each piece of the driveshaft.

The standard machine has a maximum capacity of 1,000 pounds which is the highest capacity in the automotive marketplace. The drive system has a 1 hp dc motor with a 7/8" internal shaft, again the most heavy duty in the industry. The maximum widthof part that can be balanced is 55" without using the optional 5' base extension. The machine comes standard with roller
Bearings and calibration test rotor.

Other features include 50 memories for saving part dimensions, self diagnostics, self calibration, printer port and digital filtering system for accurate variable speed control.

This machine is manufactured with standard digital electronics. Enhanced digital electronics are also available.

In order to balance regular V-8 crankshafts, the following accessories are recommended:

*- extra lengths available

**- 220V single phase also available
